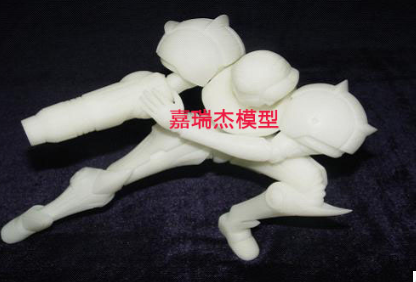

1、采用ABS制作的手板模型，具备良好的抗冲击性、耐热性、耐低温性，以及耐化学药品性。

1. The prototype made of ABS has good impact resistance, heat resistance, low temperature resistance, and chemical resistance.

2、采用ABS制作的手板模型，在加工时，相对密度在1.05左右，不易吸水；遇到大件需要拆件加工时，拆件粘结非常牢固，不影响其强度，是适合做拆件加工的材料。

2. The prototype made of ABS has a relative density of around 1.05 during processing, making it difficult to absorb water; When encountering large parts that need to be disassembled for processing, the adhesion of the disassembled parts is very strong and does not affect their strength, making it a suitable material for disassembly processing.

3、采用ABS制作的手板模型，可以采用多种加工方式，如硅胶复模、CNC加工或者3D打印；其容易加工的特点，也使制作成本比其他材料低。

3. The prototype made of ABS can be processed using various methods, such as silicone replication, CNC machining, or 3D printing; Its easy processing feature also makes the production cost lower than other materials.

4、采用ABS制作的手板模型，容易进行后处理，其表面颜色呈不透明白色，材质本身可做上色处理，所以可完成多种颜色的手板制作，并且容易打磨，表面的抛光都可达到高光效果。

4. The prototype made of ABS is easy to post-treat, and its surface color is opaque white. The material itself can be colored, so it can complete the production of various colors of the prototype, and it is easy to polish. The polishing of the surface can achieve a high gloss effect.

ABS板材具有极好的冲击强度、尺寸稳定性好、染色性、成型加工和机械加工好、高机械强度、高刚度、低吸水性、耐腐蚀性好、连接简单、无味、具有优良的化学性能和电气绝缘性能。能耐热不变形，在低温条件下也具有高抗冲击韧性。还是一种坚硬，不易划伤，不易形变的材料。低吸水性;高尺寸稳定性。

ABS sheet has excellent impact strength, good dimensional stability, dyeing properties, good forming and mechanical processing, high mechanical strength, high stiffness, low water absorption, good corrosion resistance, simple connection, non-toxic and odorless, and excellent chemical and electrical insulation properties. It can withstand heat without deformation and has high impact toughness even under low temperature conditions. It is still a hard, non scratch, and non deformable material. Low water absorption; High dimensional stability.

ABS板材加工注意点

Precautions for ABS board processing

1、常规ABS板不是很白，但韧性非常好，可以用剪板机裁剪，也可开模具冲。线锯机、钢丝锯、钢锯等都很适合用来加工ABS板材;

1. Conventional ABS boards are not very white, but they have excellent toughness and can be cut using a shearing machine or punched with a mold. Wire saws, wire saws, and hacksaws are all suitable for processing ABS sheets;

2、加工ABS板材要看材料的厚度区分对待，如果是2毫米以下的ABS板材，用刀在表面划一道线，然后向划线反面一扳，就可以掰为两部分了。

2. When processing ABS sheets, it is necessary to distinguish them based on the thickness of the material. If the ABS sheet is less than 2 millimeters, use a knife to draw a line on the surface, and then pull the opposite side of the line to break it into two parts.

3、而2毫米的材料就比较难扳断，就要借助尖利的工具处理。可以将钻头磨成薄板钻头的形状，使钻出的孔边缘整齐、美观，但要注意切削速度不要太快，以免造成ABS板材损坏。

3. And the 2mm material is relatively difficult to break, so sharp tools need to be used for processing. The drill bit can be ground into the shape of a thin plate drill bit to make the edges of the drilled holes neat and beautiful, but it is important to note that the cutting speed should not be too fast to avoid damage to the ABS board.
